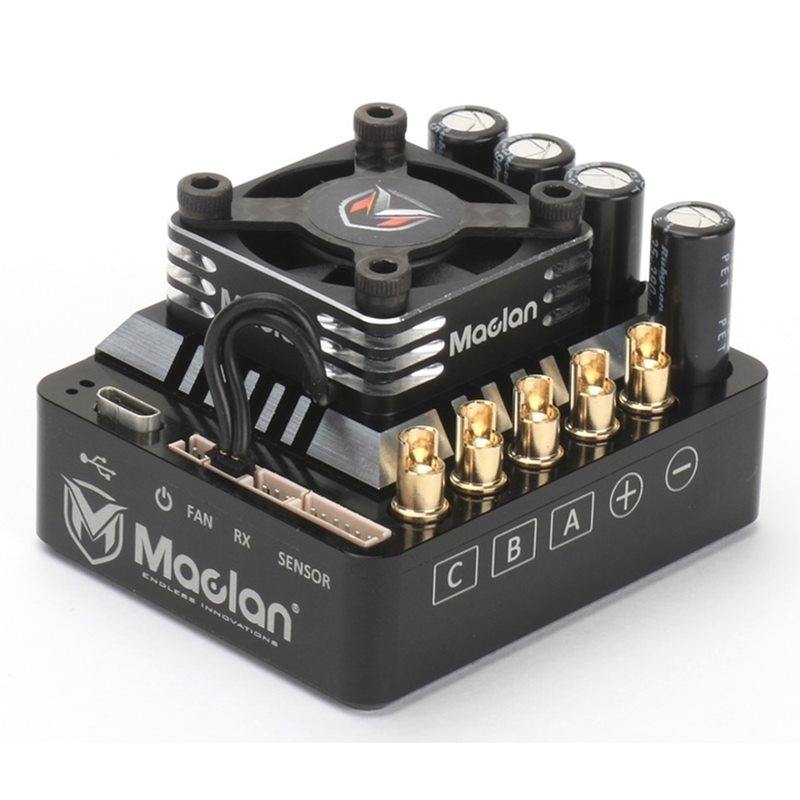

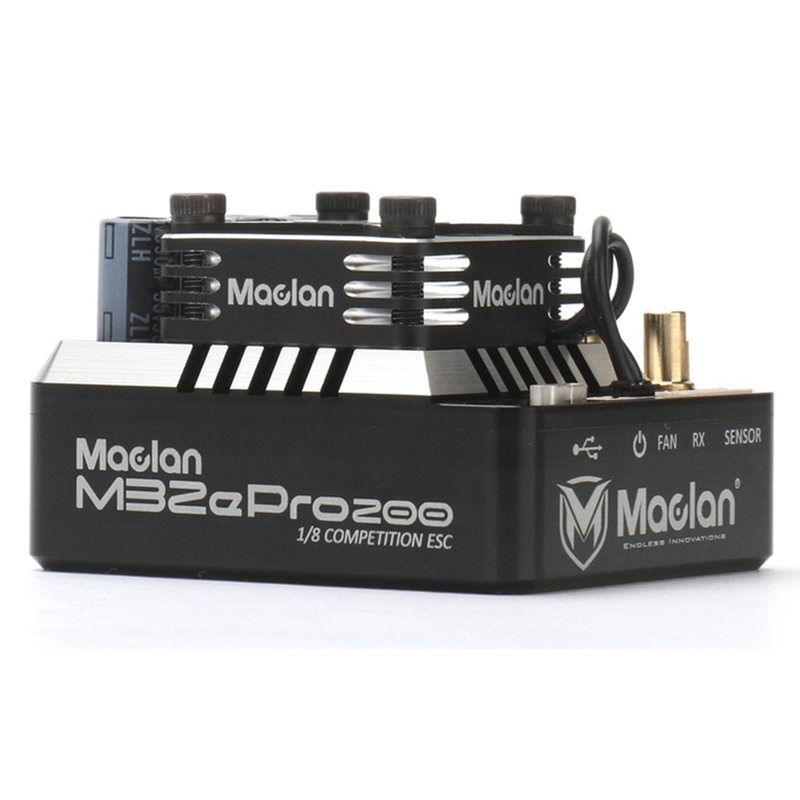

Maclan M32e Pro 200 Competition 1/8 Brushless ESC
MCL2013
The M32e Pro 200 Competition 1/8th ESC is purpose-built for the 1/8th scale eBuggy and eTruggy applications with upgraded internal components.
Note: This ESC was not designed or intended for drag race applications. It will not be covered by the factory warranty if used for drag racing.
Note: This ESC was not designed or intended for drag race applications. It will not be covered by the factory warranty if used for drag racing.
Full Aluminum Case with Super Powerful 8.4V BEC, and Hurricane Aluminum Fan with Carbon Fan Guard
The M32e Pro 200 Competition 1/8th ESC utilizes a full aluminum case that ensures maximum thermal dissipation and extreme durability. The 30mm HV turbo ESC fan provides that extra insurance to cool down the ESC in extreme ambient conditions. The super-switch-mode BEC is designed to handle true HV for all types of servos from 6V to 8.4V. It provides the true power needed to steer 1/8 competition RC cars.
Wireless Link Ready
The Maclan Racing Wireless Link (sold separately) is designed for transmitting data wirelessly between Maclan Racing ESC and mobile devices (Android OS with 5.0 or later, and iOS with 13 or later). With Maclan Racing Smart Link App, it allows ESC programming, firmware updating, and viewing data logs.
Features:
- Purposely built for 1/8th scale e-Buggy and e-Truggy applications
- Upgraded internal components with Hurricane aluminum fan and carbon fiber fan guard
- Silicon coated circuit board for improved durability
- High-performance 32-bit PIC32 CPU for high speed and accurate processing
- Next generation firmware algorithms allow for a nitro-like throttle feel
- On-board USB host + slave dual-mode for ease of connectivity and unlimited extensibility
- Dual ‘power-on’ options for the ease of operation. (can be controlled by a switch or direct to the battery)
- All aluminum structures with omnidirectional heatsink for maximum airflow and optimum cooling performance
- All detachable connectors with several optional length cables
- Adjustable throttle and brake PWM frequency for fine-tuning
- Motor/ESC temperature protection and low voltage protection
- MS Windows 7/10 compatible and mobile app software for data logging, programming, and firmware updating
- Best performance and durability with Maclan MR8.4 series motor
Specifications:
- Scale: 1/8th
- Power Input: 2S-4S Li-Po
- Intended Applications: 1/8 e-Buggy, 1/8 e-Truggy and 1/10 SCT (drag race not supported)
- Continuous Current: 200A
- Peak Current: 1000A
- Mode: Sensored/Smart Sensorless
- CPU: Super speed PIC32 32-bit CPU
- Wire input: Black 12AWG 200mm x2
- Wire output: Black 12AWG 200mm x3
- Cooling fan: 30x30x10mm Hurricane Aluminum turbo fan
- Dimension: 58x48x34mm
- Net weight: 110g (w/o wires and cooling fan)
- Support voltage/ Motor KV:
- 2S: up to 5000KV
- 3S: up to 4000KV
- 4S: up to 3000KV
