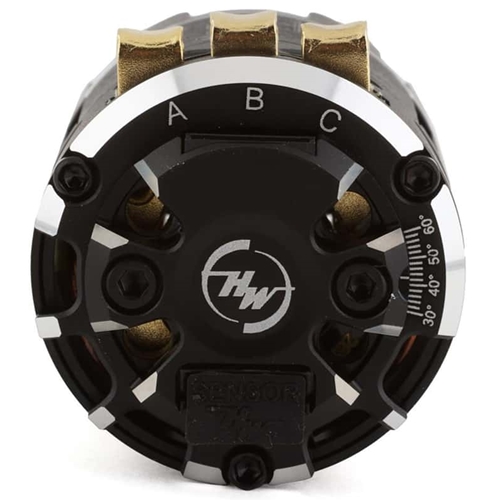

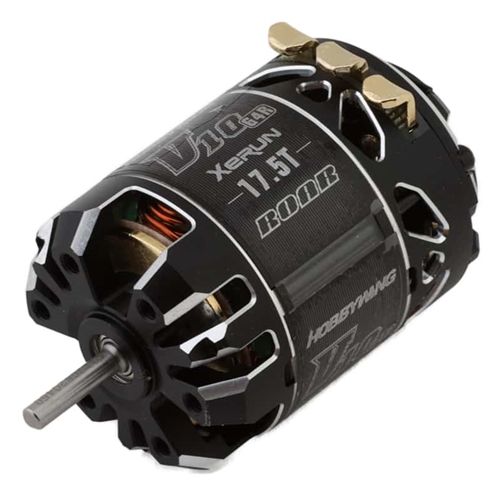

Hobbywing Xerun V10 G4R Competition Stock Brushless Motor (17.5T) (ROAR)
HWI30401745
The Hobbywing Xerun V10 G4R 17.5T Competition Stock Brushless Motor has been
greatly optimized to provide maximum torque and increased power.
With a lower internal resistance, this motor is more efficient and runs
cooler when compared to the G3R motors. To further increase performance
the motor adopts a fully exposed stator core allowing more airflow over
the stator. The motor also features a high-precision endbell plate to
improve consistency and structural stability. Dual sensor ports can be
found allowing for different wiring setups.
Features:
Features:
- Specially designed for 1/10 -1/12 Stock racing
- High-performance stator core
- Built-in high precision Hall sensor combined with the high precision and balanced rotor that guarantees outstanding linearity and smoothness
- Innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation
- Rear end of the motor is a big opening structure to further improve the heat dissipation effect
- Dual sensor interface design to meet various wiring/layout requirements
- Widened copper bar spacing for easier wire soldering
- High precision and high strength bearings, and copper solder tabs
Specifications:
- ROAR Approved: Yes
- Turns: 17.5T
- kV Rating: 3150kV
- Outer Diameter: 35.8mm
- Length: 51.3mm
- Shaft Diameter: 3.175mm
- Weight: 158g
- Poles: 2
- Front Bearing: 9x4x4mm
- Rear Bearing: 8x3x4mm
- No Load Current: 4.6A
- Adjustable Timing: 20-60 degrees
- Applications: 1/10th or 1/12th Stock Class Racing
- Input Voltage: 1-2S LiPo (3.2-7.4V)
