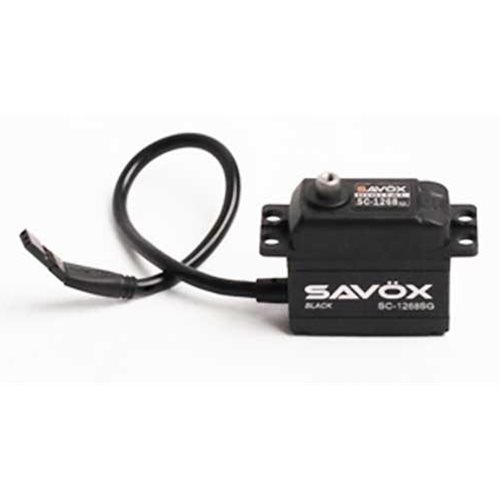

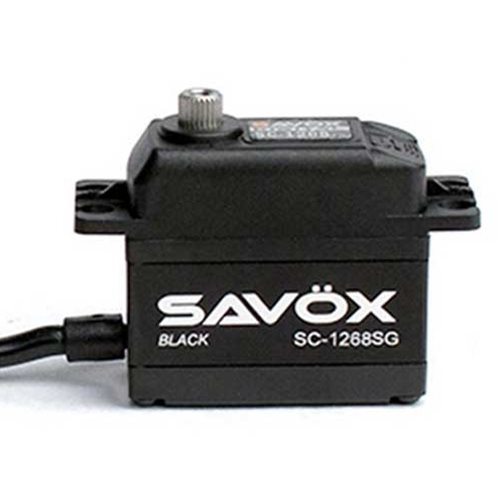

Savox SC-1268SG Black Edition "High Torque" Steel Gear Servo (High Voltage)
SAVSC1268SG-BE
This high torque steel geared servo is also high voltage. Now you can run an unregulated LiPo battery for extreme torque! The SC-1268SG is the high torque servo you always dreamed of. Best used for 1/8th scale nitro racing and can push 347.2 oz. of torque.
Features:
- Sleek new unique black design with laser etching and a shorter 200mm black shielded lead wire
- Combines leading edge technology with super high 12 bit (4096) resolution.
- Higher performance due to increased voltage and improved technology
- Incredible torque
- Increased transit speed
- Increased efficiency
- Water resistant with 4 silicon seals implanted
- Strong and precise-made steel gears
- Suitable for 1/8th nitro racing and large scale aircraft, 600 and 700 class helicopters.
Specifications:
- Torque:
- @4.8V: 160 oz-in.
- @6.0V: 208 oz-in.
- @7.4V: 347oz-in.
- Speed:
- @4.8V: .15 sec/60°
- @6.0V: 0.13sec/60°
- @7.4V: 0.11sec/60°
- Voltage Range: 4.5v-7.4v
- Weight: 62g
- Motor: Coreless
- Gear: Steel
- Case: Aluminum Heatsink
- Output Shaft: 25T Spline (Futaba)
- Dimensions (LxWxH): 40.3x20.2x37.2mm
- Frequency: 250-333hz
- Pulse Width Frequency: 1520
